GC-PSU500 for lunchbox API500 - PCB
GC-PSU500 - 3 rail power supply
The 3-rail GC-PSU500 power supply powers up to two API500 racks loaded with 11 x API500 modules.
GC-PSU500 has automatic tracking and shutdown for each pair of +/- V power rails. Thus, the +/- rails turn on and off together, minimizing thumps and crackles in any audio equipment it feeds. In addition, if a fault on the currents and shuts down one power rail, the other power rail will shut down synchronously, thus protecting expensive DOA and DIP8 op amps from internal lockout which can kill op amps.
Available in deux versions:

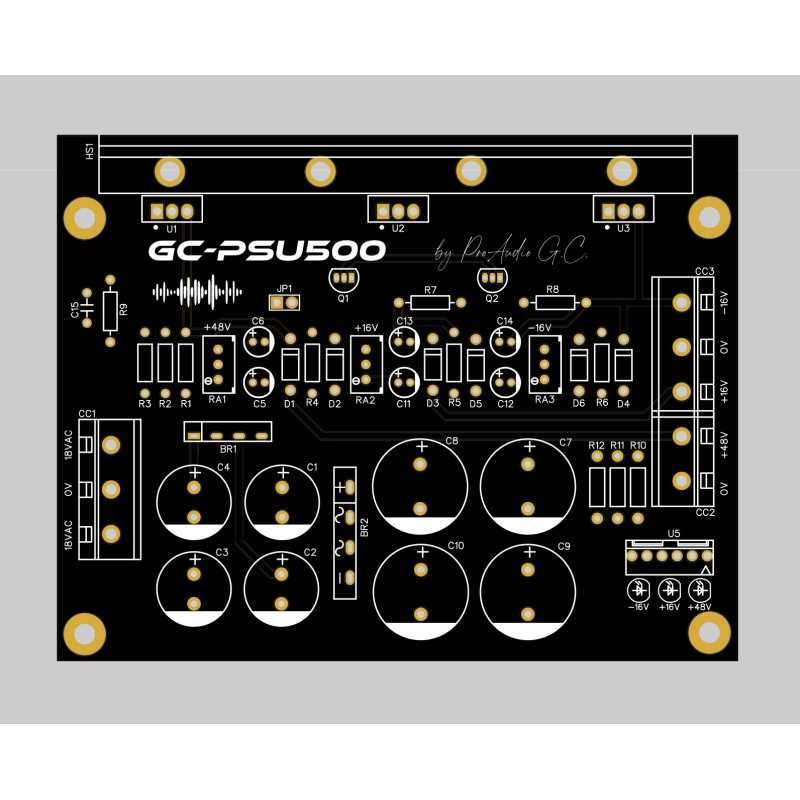

- PCB Only.

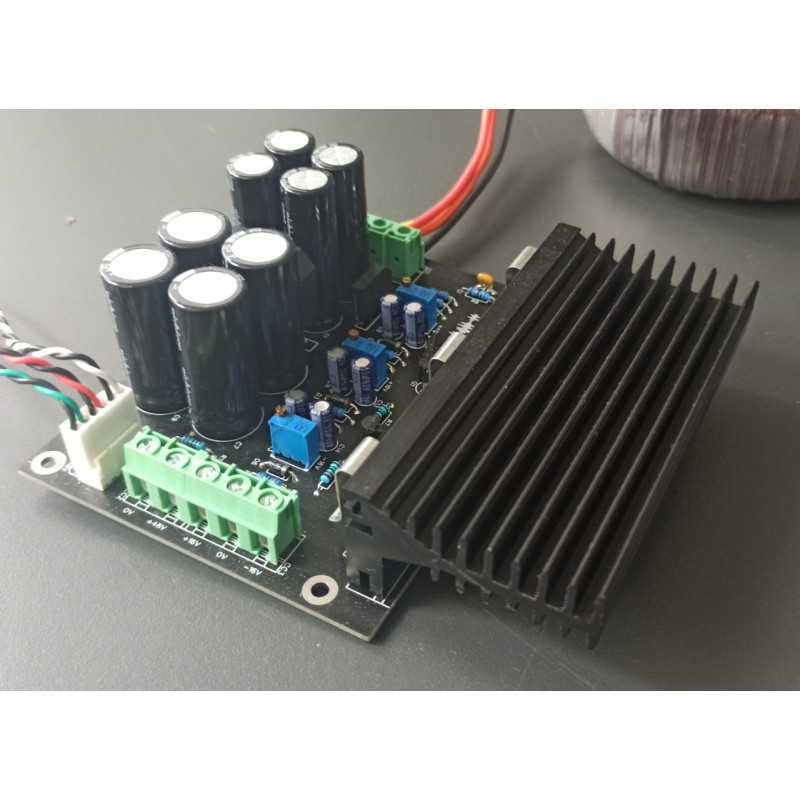

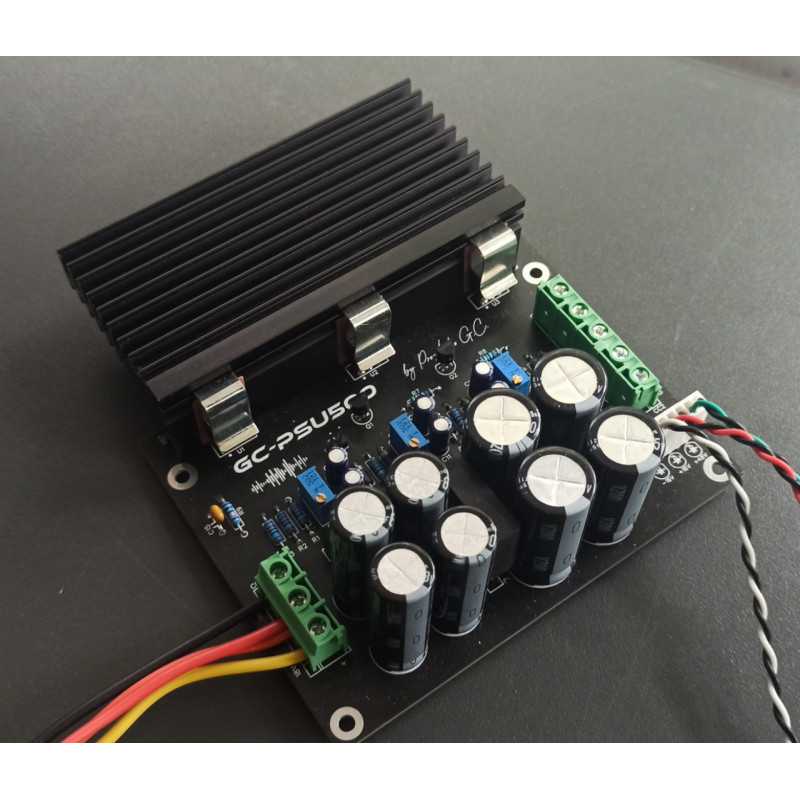

- PCB assembled and tested, with heatsink. ( Delivered without enclosure, without transformer, without Dels, without plugs and without switch.)
+16vdc @ 3Amp / -16vdc @ 3Amp and +48vdc @ 400mA avec un transfo 2 x 18vac 160VA to 225VA.
Dimension : 115mm x 90mm x 1,6mm
Details on the page DIY PROJECTS
