    FET Comp GC76 (1176 Clone) - PCB

    €16.80
    No tax

    The GC76 is a 1176 cloneGC76, is not meant to be a 100% faithful recreation but merely a great sounding tool, quick and easy to build.

    Volume discounts

    QuantityUnit discountYou Save
    2€0.50€1.00
    Quantity
    On demand

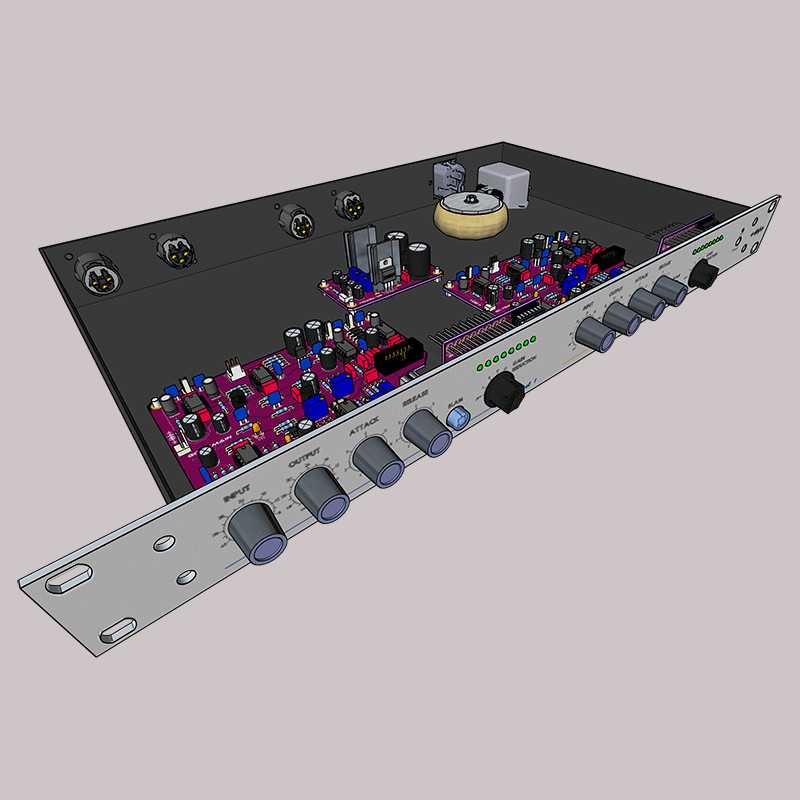

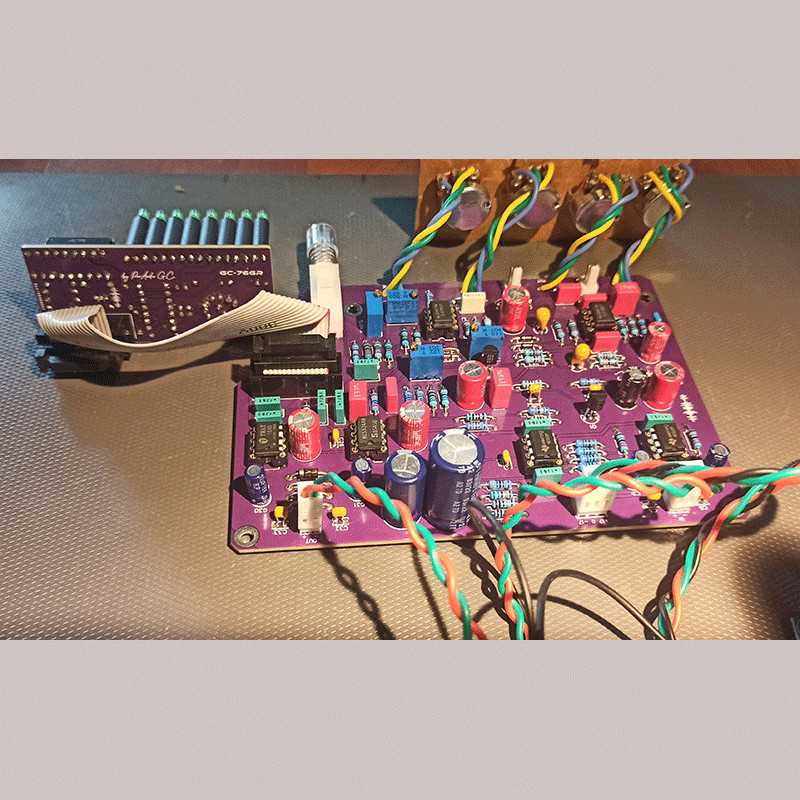

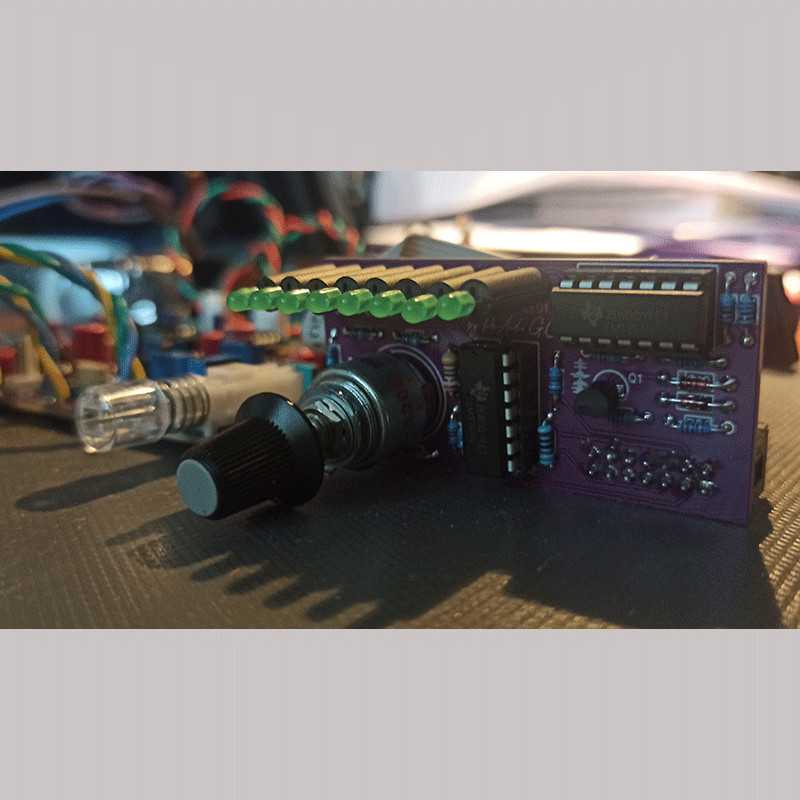

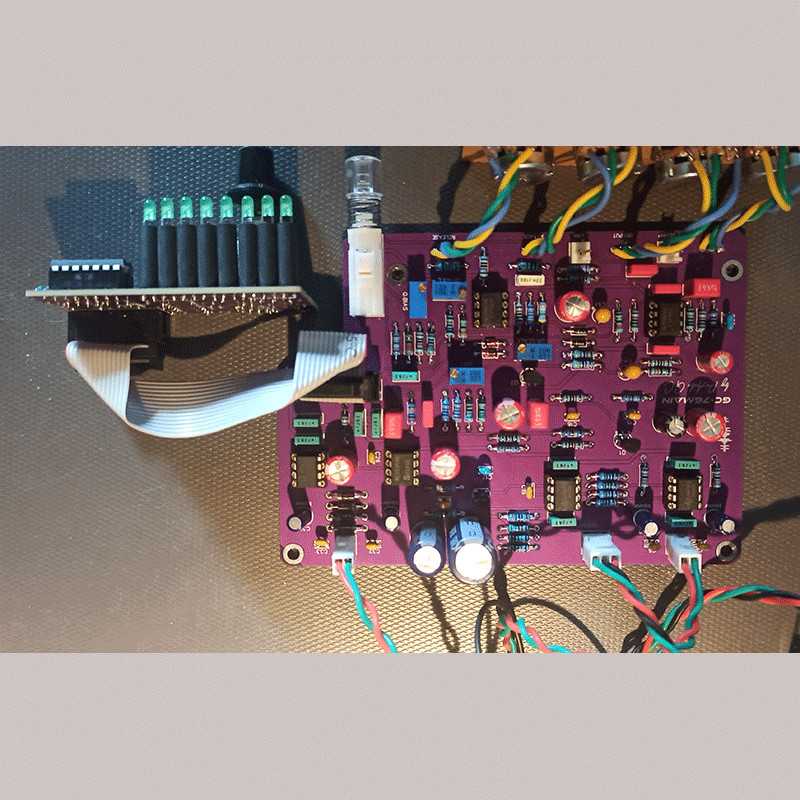

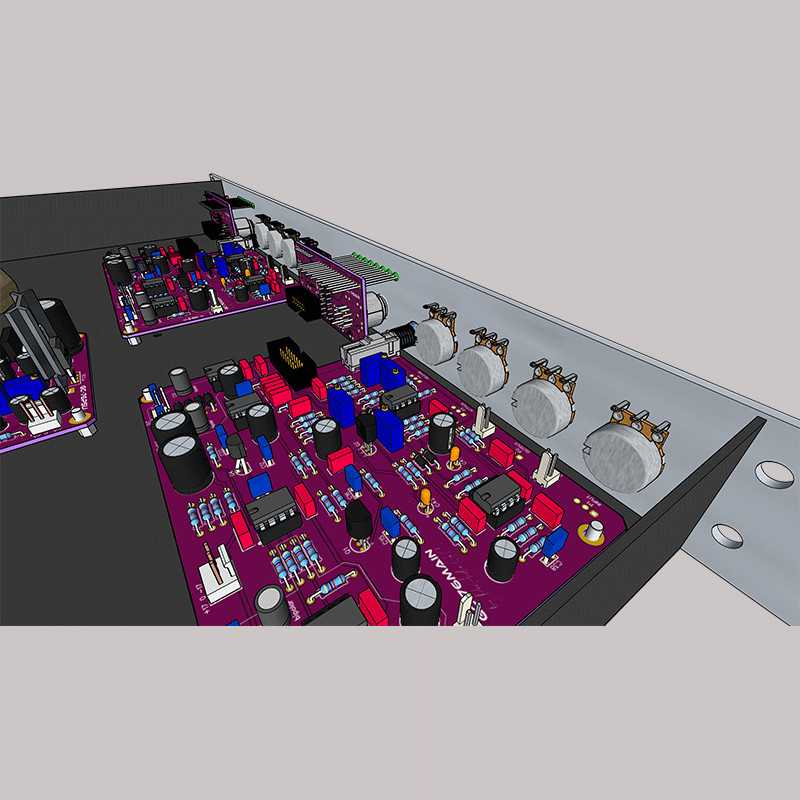

    The circuit is based on opamp version of the 1176 with quite a few changes. The signal preamp expands on a mic pre design by Samuel Groner. The noise floor is much lower than on an original 1176, distortion is about the same (it‘s a FET comp after all). Compared to my RevD it definitely has the same character minus trans- former colouration. All-buttons-mode (SLAM) is also included using an illuminated switch. Input and output are electronically balanced, gain reduction metering is provided by eight LEDs and a couple of comparators. The boards include optional connectors to connect input and output transformers (and in this case omit active components associated with I/O) and connecctors for an optional LINK switch and the sidechain HP filter.

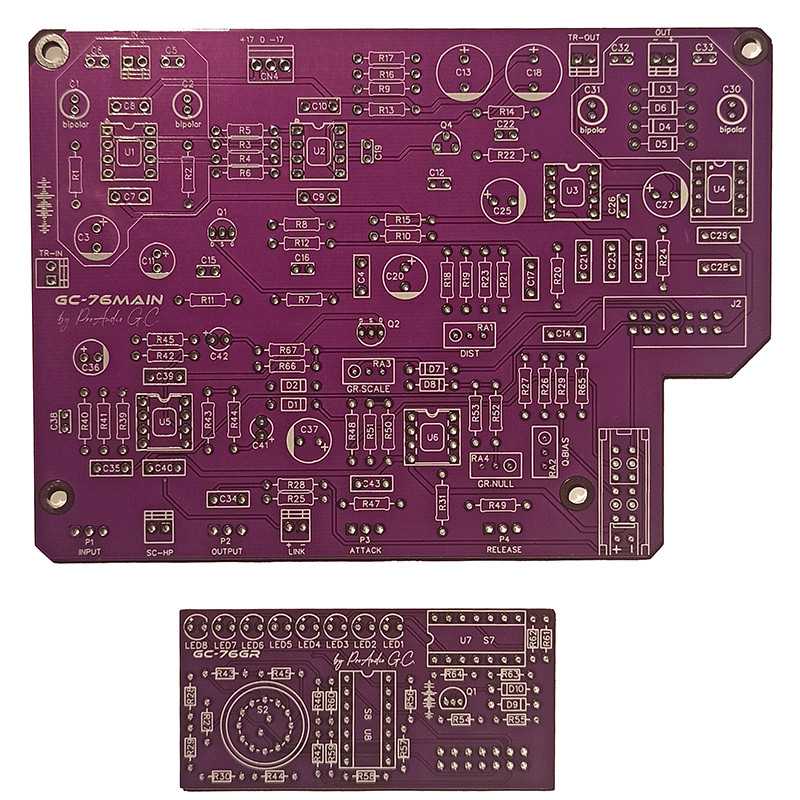

    - PCB GC76-MAIN and PCB GC76-GR

    - PCBs only

    - Dimension GC76-MAIN: 93mm x 134mm x 1,6mm

    - Dimension GC76-GR : 33mm x 68mm x 1,6mm


    Details on the page DIY PROJECTS

    GC-76COMP
    5 Items
