W492-EQ or W492-EQ/E (clone Neumann)
€12.00
No tax
W492 EQ (clone Neumann)

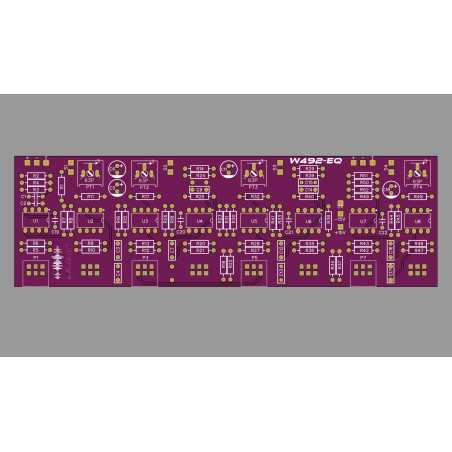

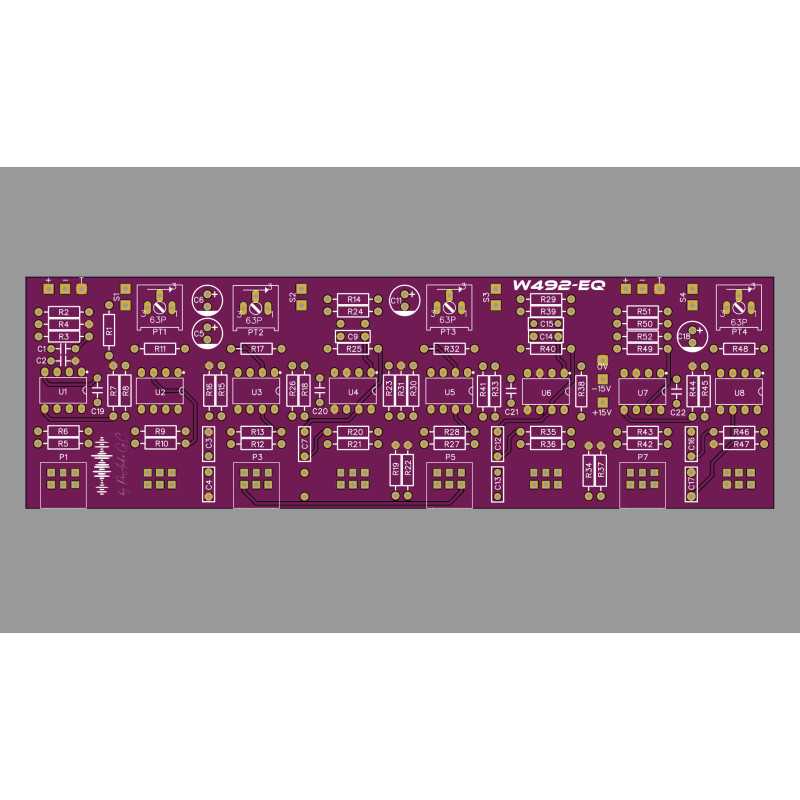

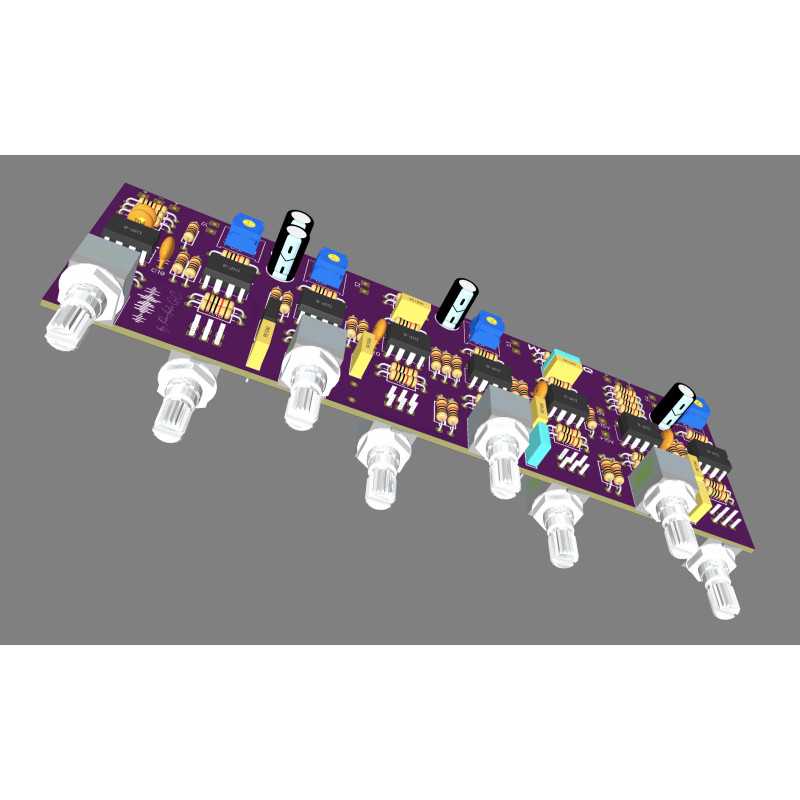

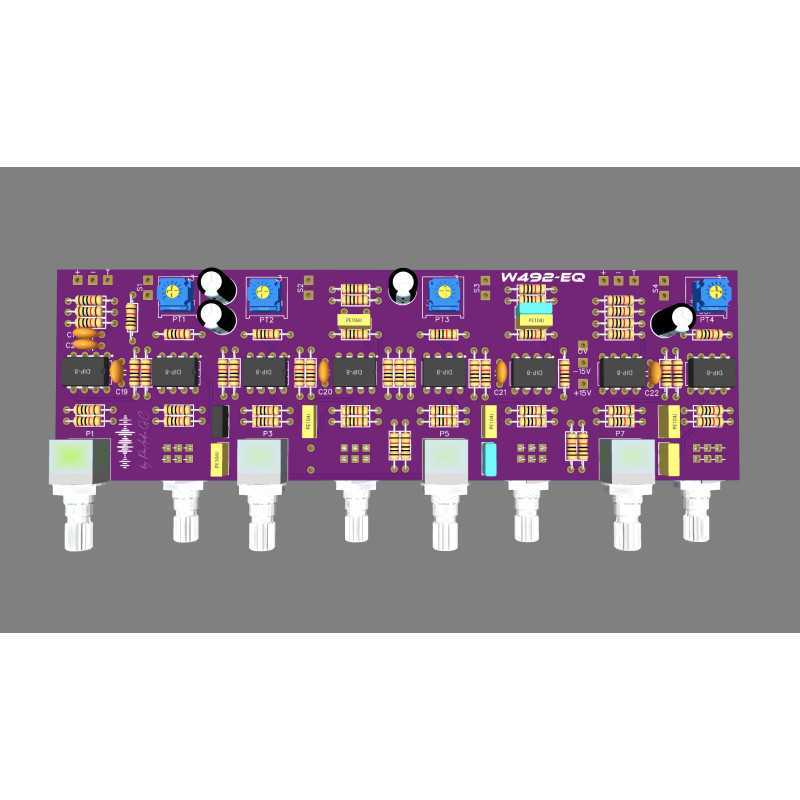

PCB mono of the famous mastering Neumann W492 eq.
The W492-EQ/E version is identical but from a batch with two small track errors that are easy to correct.
it is obviously sold at an attractive price.
- PCB only.
- Equalizer 4 bands.
LOW : 50-400 Hz, +/- 15db
LOW MEDIUM : 60-1000 Hz, +/- 15db
HIGH MEDIUM : 1-16 KHz, +/-15 db
HIGH : 3-10 KHz, +/-15 db
- Each band is switchable.
- Noise below -90db.
- power supply needed : 2 rails of +16V / -16V
- dimensions : 156 mm x 48 mm
 | Details on the page DIY PROJECTS |
