Fet-Boost PH (FetHead PH) - Condenser Mic Booster
Fet-Boost PH (Fet-Head PH) - Condenser mics booster

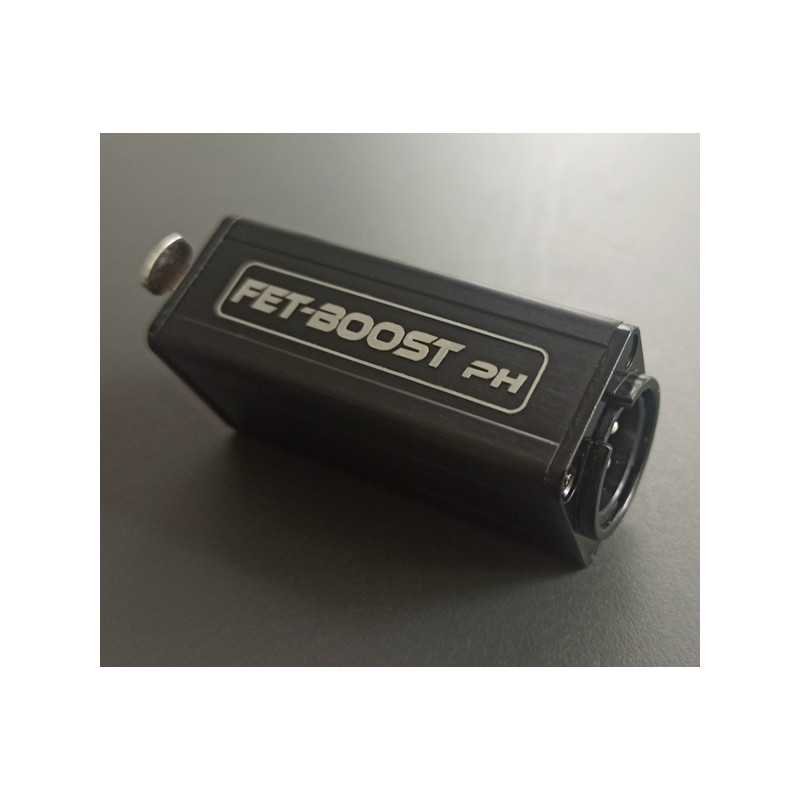

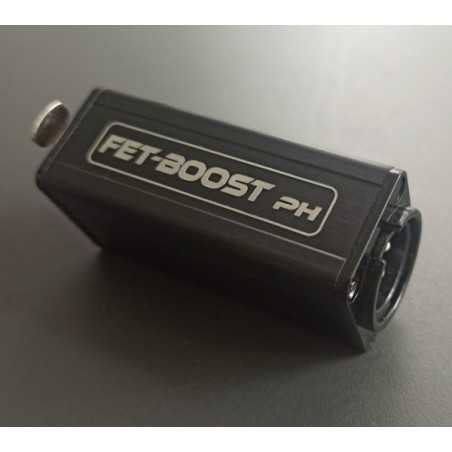

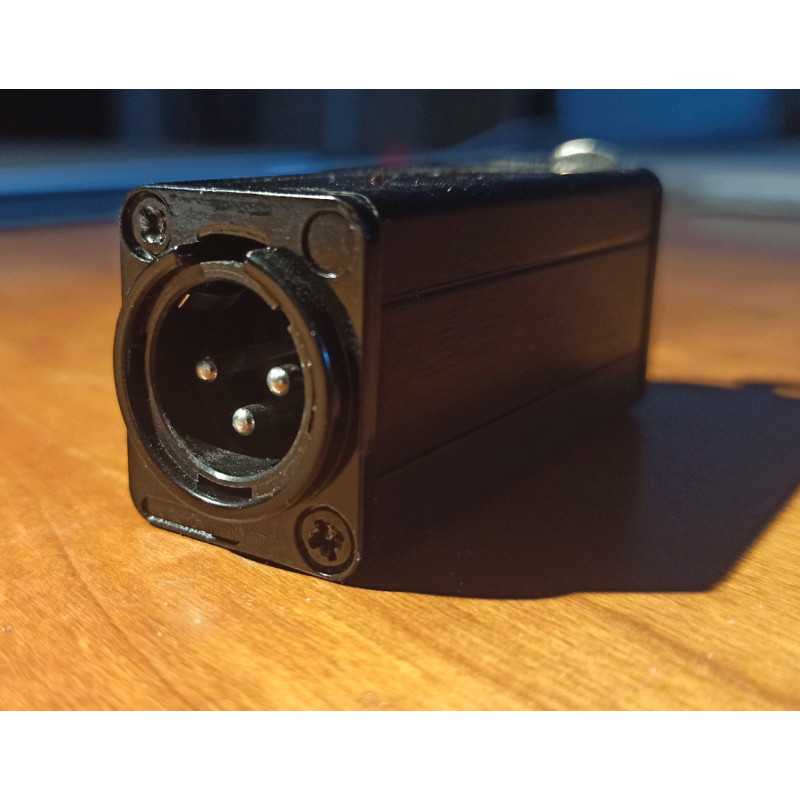

The Fet-Boost PH is a high quality, low noise mic preamp. it allows sound optimization for condenser mics. The electronic components are housed in a robust metal chassis with a balanced female XLR input and a balanced XLR output, rugged enough for home, studio or live use.
Very useful and appreciated to compensate for the losses of long cable lengths.
The Fet-Boost PH circuit uses 48v phantom power, and pass power to the microphone.
- Suitable for condenser microphones
- 22dB of amplification (load @3 KOhm)
- Ultra low noise Class A JFet amplifier

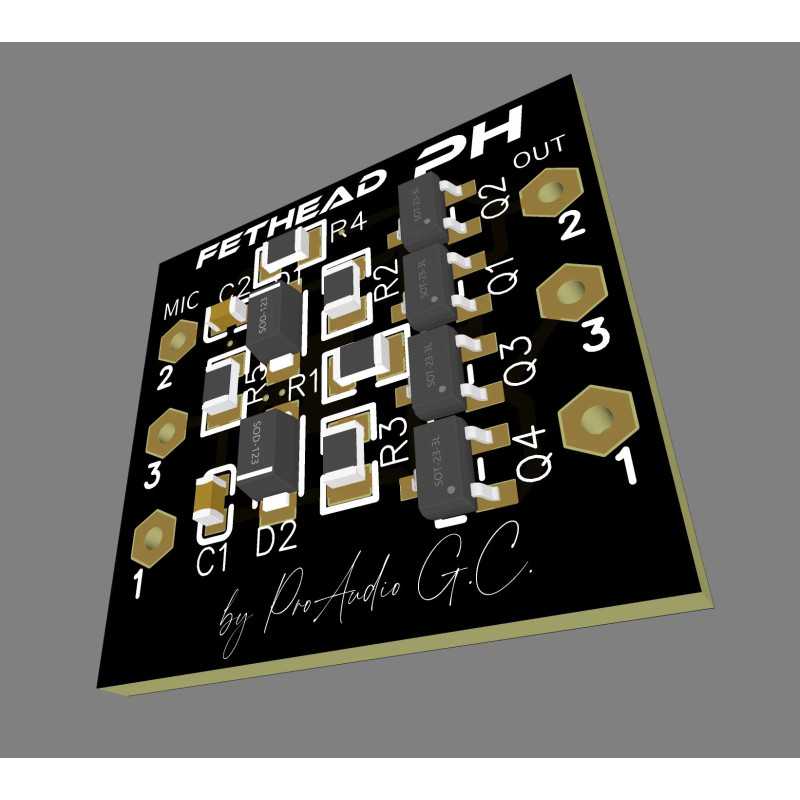

- 4 Jfets
- Z-in 1KOhm
- Frequency response 30hz-20khz (+/- 1dB)
- Metal case
- Requires 48V phantom power
- Allows phantom power to go to the microphone
Dimension : 25mm x 30mm x 65mm
